Safety at an Attractive Price
Leuze is bringing to market the new ELC 100 safety light curtains, which can be used to reliably guard points of operation: The devices contribute to making machine designs cost effective and are easy to integrate and install.
Manufacturers and operating companies of machines and systems can now use new Leuze safety technology for contactless guarding of points of operation at an attractive price: The ELC 100 safety light curtains are suitable for applications with operating ranges of up to six meters and enable guarding with short safety distances.
For a cost-effective machine design
With the new devices, Leuze offers optoelectronic safety technology for a cost-effective machine design. The robust ELC 100 safety light curtains focus on the key features. They can be used in various applications, for example, guarding machine openings where parts are fed in manually. Their high resolutions of 17 and 30 millimeters reliably detect fingers and hands. The protective field extends to the edge of the housing. As a result, the devices can be mounted flush at the boundaries without any dead zones occurring. The cable outlet is specially constructed to enable flexible integration of the devices into the machine design. The cable can be oriented in any direction. The safety light curtains are also optimally designed for access guarding on machines and systems, since the protective fields are up to 1,500 millimeters in length. Thanks to their high shock resistance, the safety light curtains are also suitable for safeguarding points of operation on presses.
Easy to install, with no configuration
The simple mechanical and electrical design enables quick installation of the devices. The supports with swivel function can be easily mounted into the grooves of the ELC 100 safety light curtains. A practical feature is the multi-level alignment display, which can be used to quickly position the devices in the optimum alignment. The bright LEDs are highly visible right from the transmitter. If alignment is not required, for example, with short distances, the costs can be reduced even further with the sliding blocks included in the scope of delivery. Connection via the 4-pin cable is also particularly easy. No configuration is required.
Robust in operation
The design of the ELC 100 safety light curtains ensures reliable operation. The housings are made entirely of metal. The raised side walls protect the front screen. Thanks to intelligent beam evaluation with object tracking, the devices operate reliably without switching off, even in demanding environments with chips or sparks. The devices are also particularly resistant to shocks and vibrations.

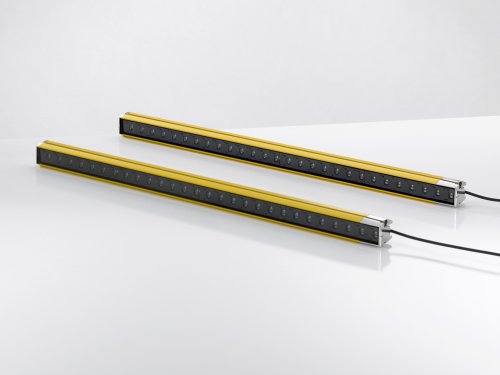

The new Leuze ELC 100 safety light curtains are suitable for reliably guarding points of operation. They contribute to making machine designs cost effective.

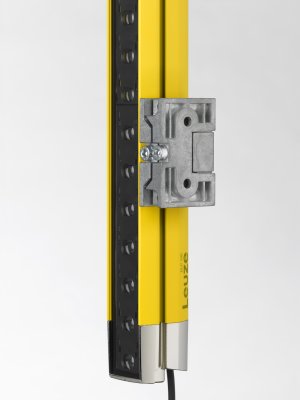

Thanks to the supports with swivel function, the ELC 100 safety light curtains are quick to install.

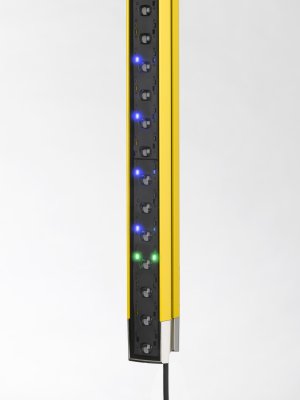

The multi-level alignment display is easy to read and can be used to quickly position the devices in the optimum alignment.

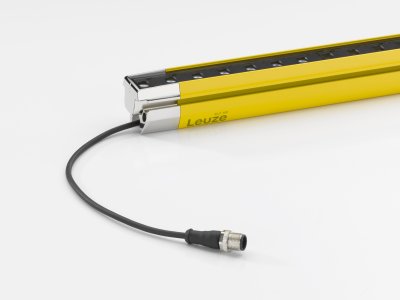

Connecting the ELC 100 safety light curtains via the 4-pin cable is also particularly easy. The devices do not require configuration.
About Leuze
With curiosity and determination, the Sensor People from Leuze have been forerunners for innovations and technological milestones in industrial automation for more than 50 years. They are driven by the success of their customers. Yesterday. Today. Tomorrow. The technology leader’s high-tech product range includes a number of different sensors for the field of automation technology. Among these are switching and measuring sensors, identification systems, and data transmission and image processing solutions. As a Safety Expert, Leuze is also focused on components, services and solutions for safety at work. Leuze concentrates on its core industries, in which the Sensor People have extensive, specific application know-how and many years of experience. These include intralogistics and the packaging industry, machine tools, the automotive industry as well as laboratory automation. Leuze was founded in 1963, headquartered in Owen/Teck in Southern Germany. Today there are more than 1200 Sensor People around the world who are working with determination and passion for progress and transformation to make their customers successful in a constantly changing industry. Regardless of whether in the technological competence centers or in one of the 21 sales companies, supported by more than 40 international distributors.
www.leuze.com
Leuze electronic, Inc
55395 Lyon Industrial Drive, New Hudson, MI 48165
Phone : (248) 752-6712
